Aria

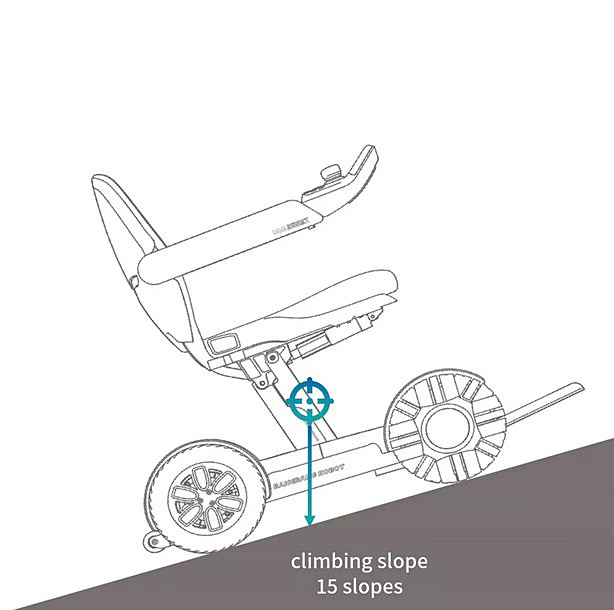

An innovative product dedicated to disabled and mobility impaired people that greatly enhances the experience of movement on any terrain. A beautifully designed and extremely functional product.   Structural design of the integrated high-strength frame The whole frame adopts a special structure, which uses two beams and elbows to form a load-bearing whole. The whole frame is not bolted together, so it will not deform or loosen after prolonged use.   Low center of gravity for easy and safe driving Roboowheel’s upper structure is particularly light; 80 percent of the weight of the entire vehicle is arranged below 20 cm and preserves against tipping up to a 15-degree slope.   Independent suspension system The front wheels are equipped with two sets of heavy-torsion suspension springs, which cushion the impact of rough roads and steps and enable users to drive safely and comfortably.   High adaptability and ease of steering Differential steering, with a turning radius of less than 73 cm, is convenient for steering and fine-tuning in a confined space, adapting to various indoor and outdoor scenarios. It eliminates the steering lag of normal universal wheels and improves the driving experience. The self-developed omnidirectional wheel is composed of a system of independent caster wheels that form a toothed structure and provides greater grip when crossing obstacles. No fear of steep slopes, free and safe riding in all road conditions, quality assurance for 1500 km.

Categories ,

Maximum Speed

6Km/h reducible to 4.5Km/h

Recharge Time

6 hours

Autonomy

25 km

Technical Sheet

Main Specs

Class

Class A

Folding mode

Electric

Speed range

<7Km/h

Motor

DC motor rated voltage 24V, Rated power 200W*2

The largest user weight

120Kg

The largest current of the controller output

30A

Performance

Slope bracking performance

12°

Barrier crossing height

45mm

Ditch width

100mm

Hill climbing performance

10°

Minimum radius of gyration

760mm

Static stability

20° for longitudinal direction and 15° for side direction

Dynamic stability

6° for upslope and 6° for downslope

Brake on level road

100cm

Anti-tip device tipping angles

18°

Wheels

Wheel specifications

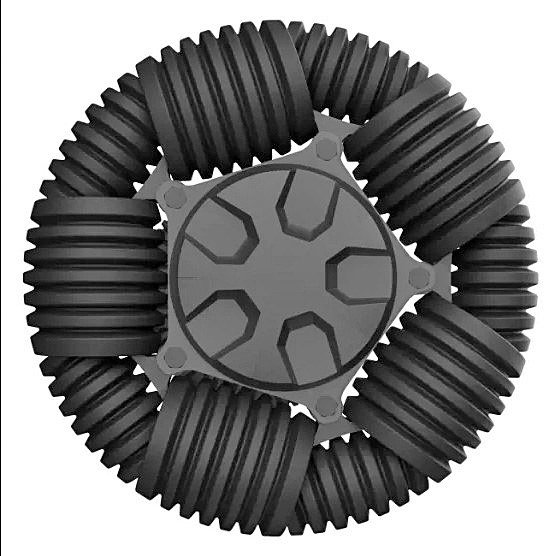

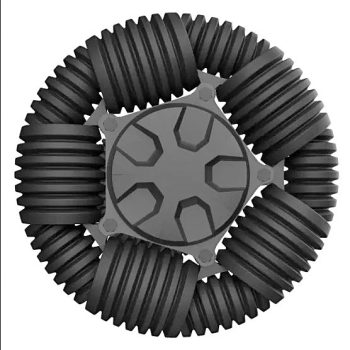

the front wheels are 10” omnidirectional wheel, and the rear wheels are 10” PU tire (2.4MPa-2.7 MPa)

Battery

Battery quantity

1

Lithium battery

DC 24V 20Ah

Battery weight

3.4±0.15Kg

Charger

29.4V 4A

Dimension & weights

Seat wide

420+5mm

Effective seat depth

420±5mm

Handle height

280±5mm

Front seat surface height

510±5mm

Angle between leg and seat surface

0-10°

Distance from the plastic holder to the seat

423±5mm

Backrest angle

-7±0.5°

Backrest height

450±5mm

Backrest angle

21°±1°

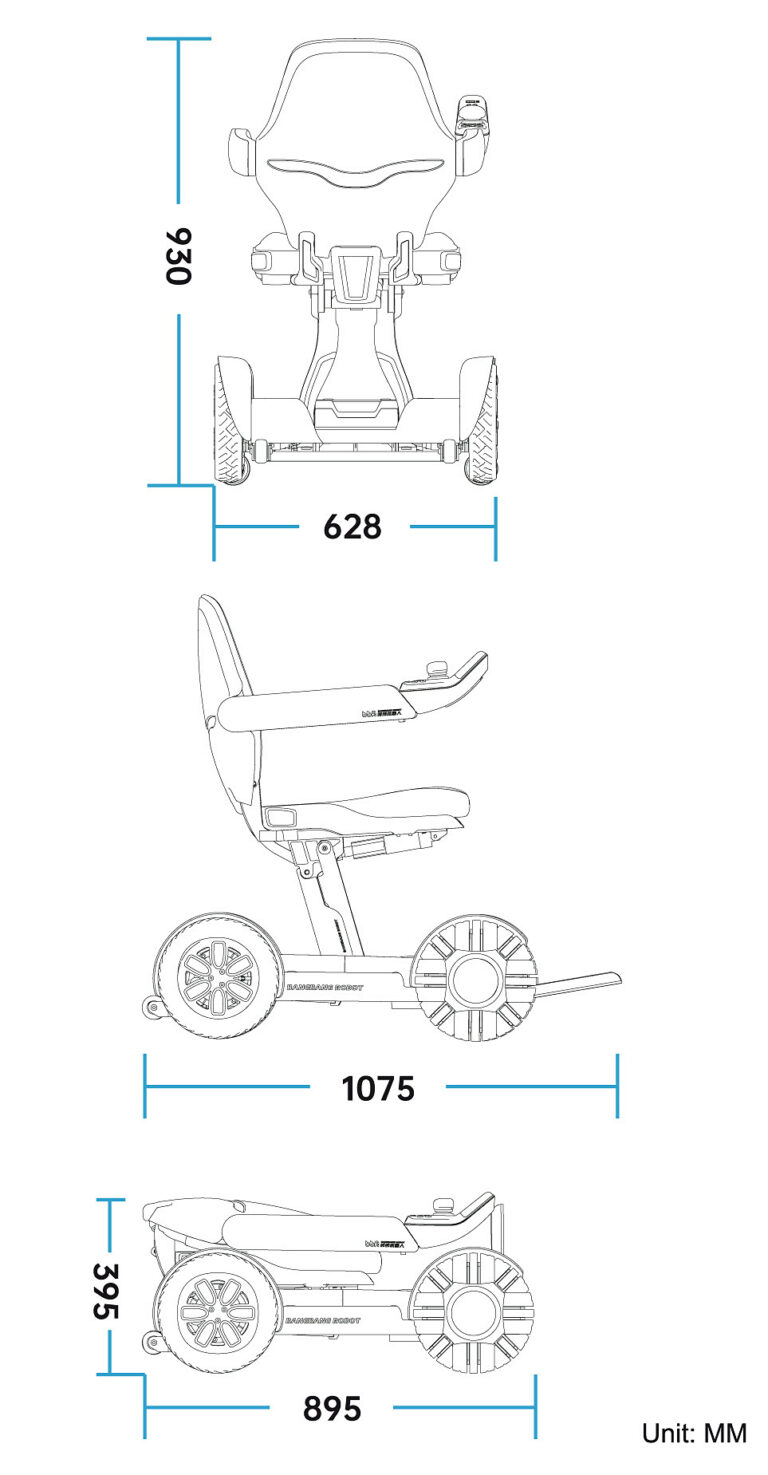

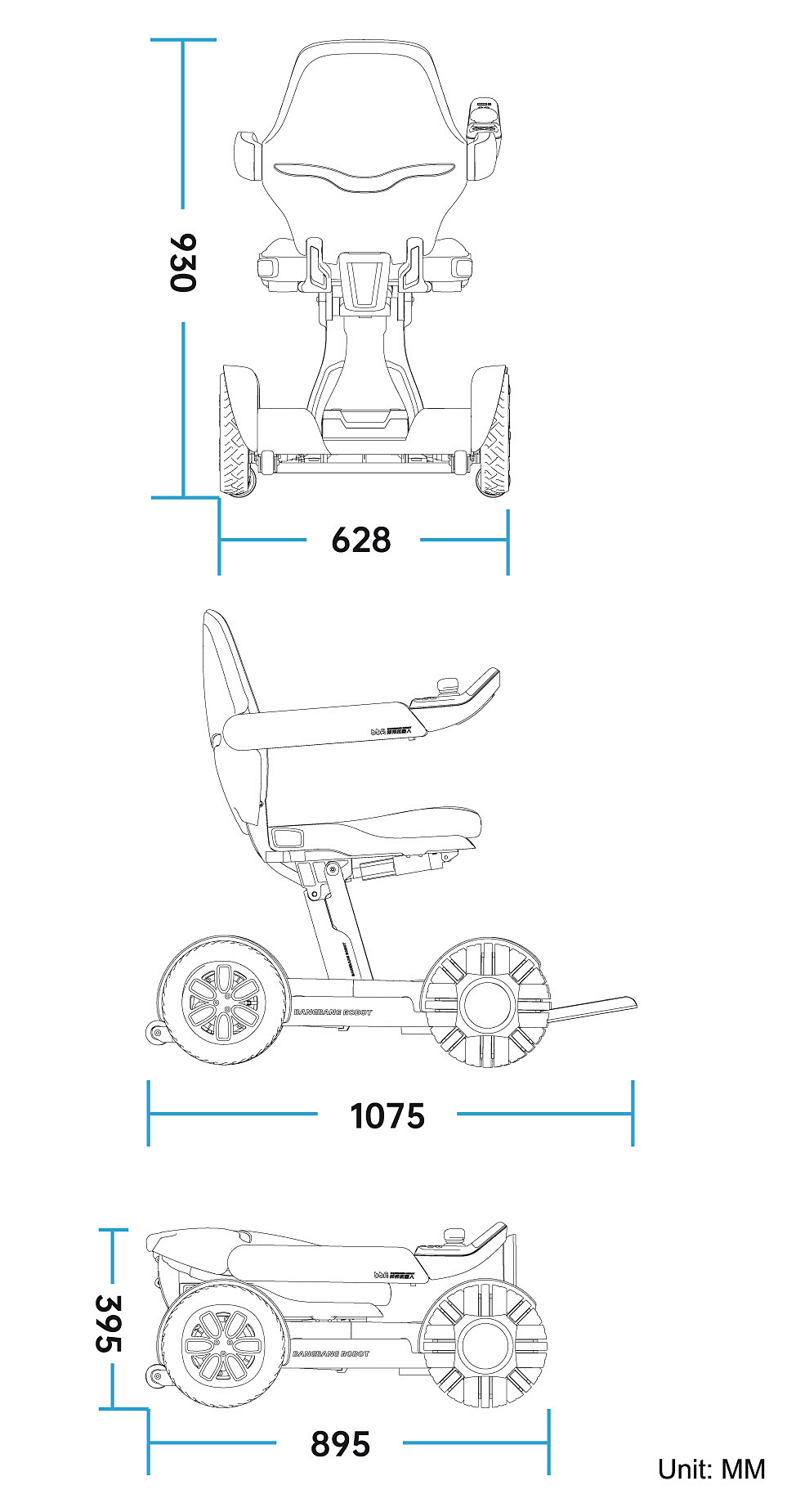

Dimensions and weight

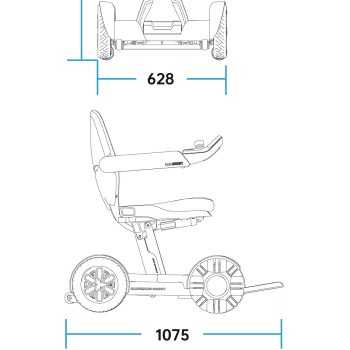

Dimensions open

1,075mm length, 628mm width, 930mm height

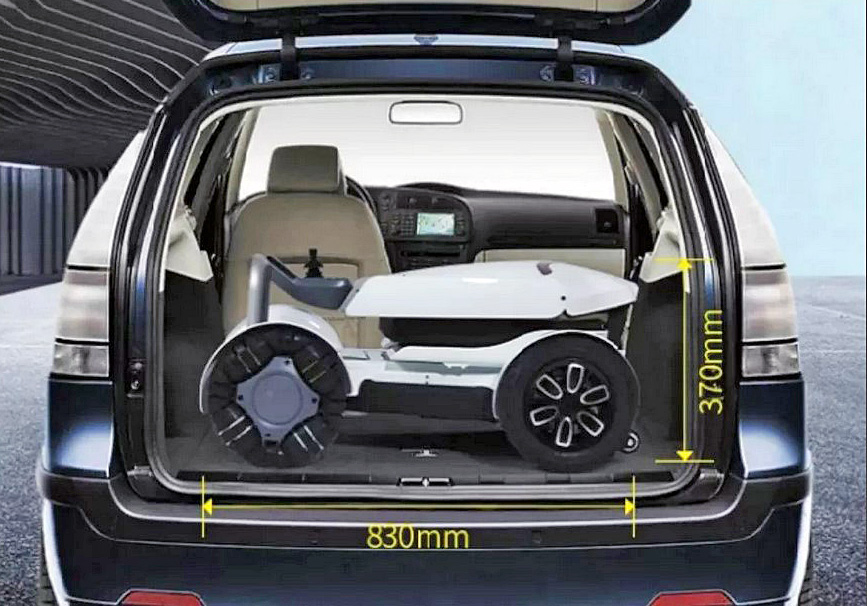

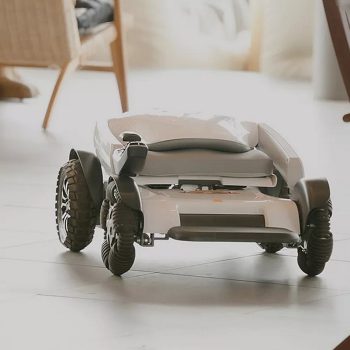

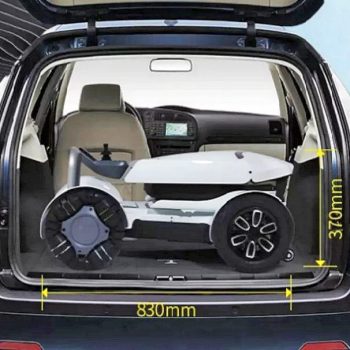

Dimensions closed

895mm length, 628 width, 395 heigth

Distance from the plastic support to the seat

423±5mm

Angle between legs and seat surface

0-10°

Pin width

1180mm

Platform height above ground

64mm

Total weight

42.1±2Kg

Packaging measurements
